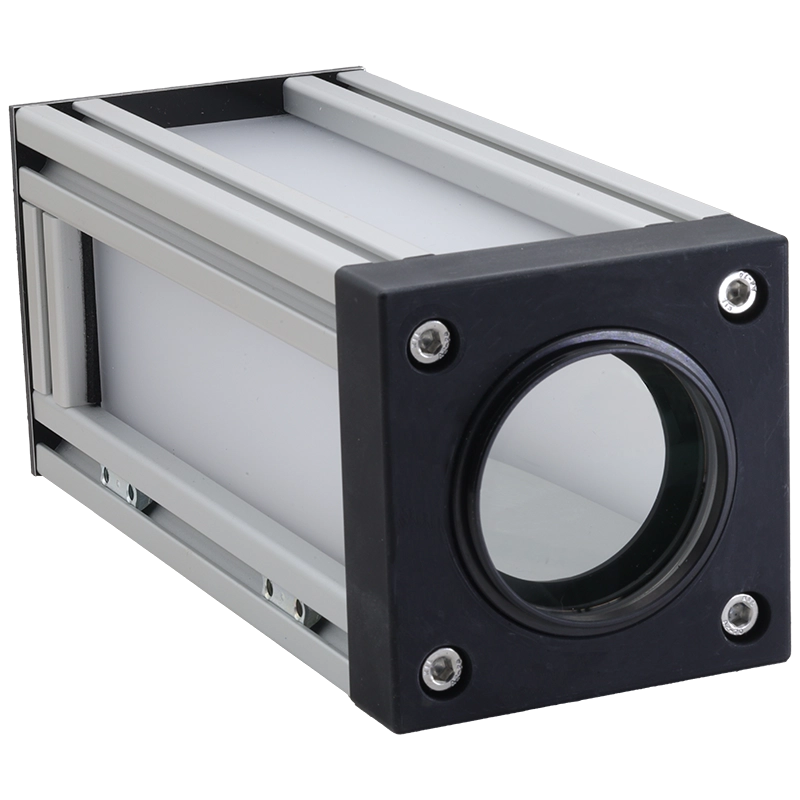

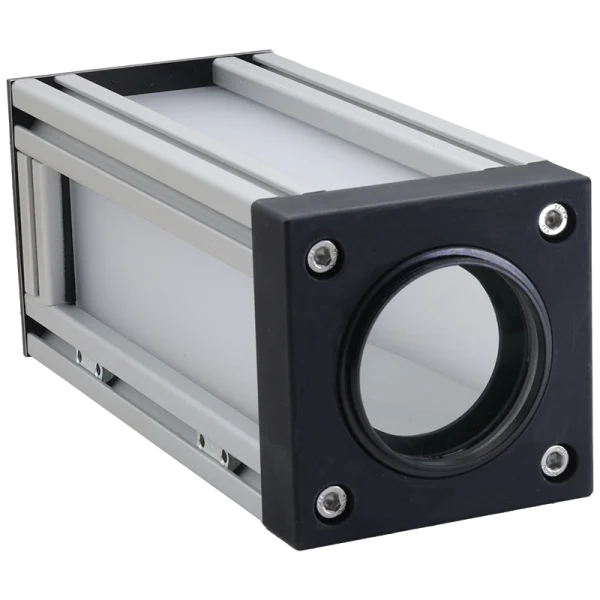

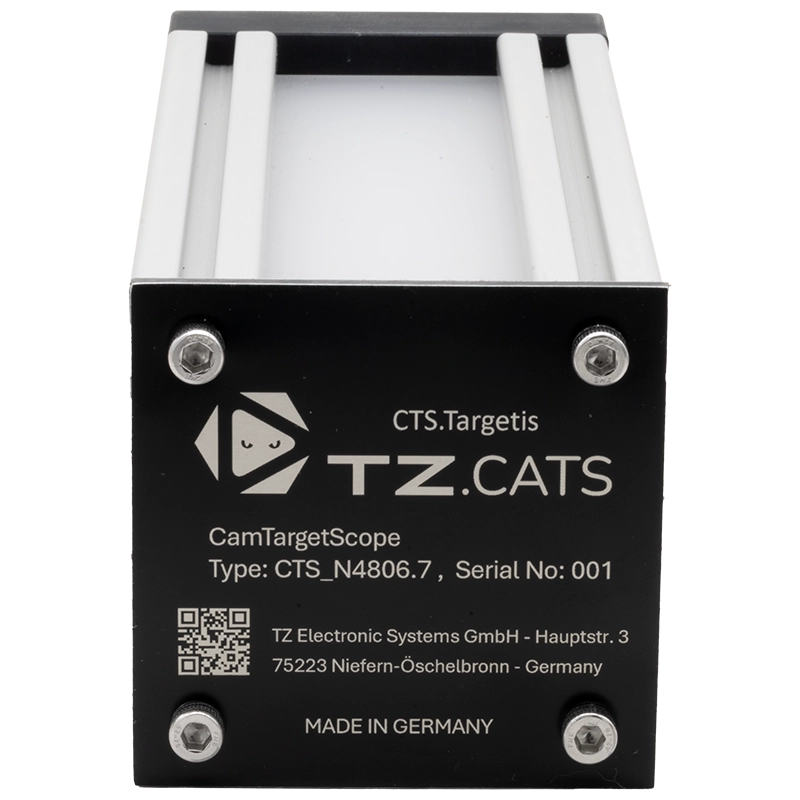

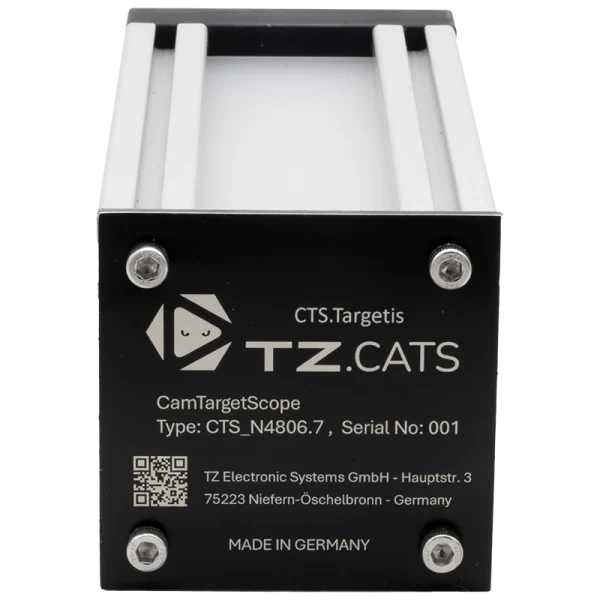

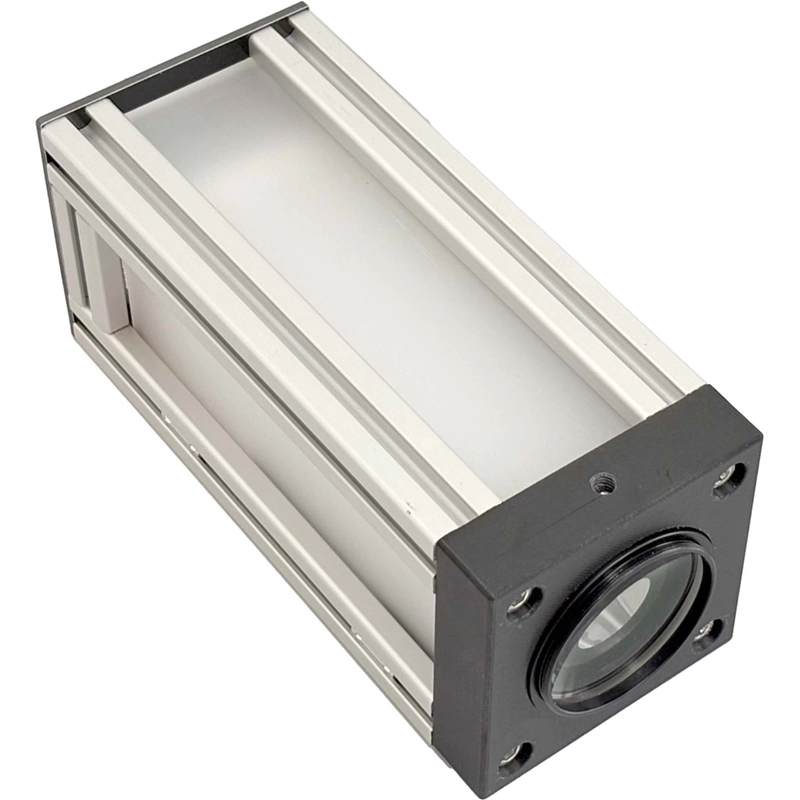

CTS0002_A
Compact, high-precision solution for the virtual representation of distant targets at very short distances. It enables reliable and space-saving tests directly in the production environment.
Working Distance d (distance from camera front lens with 70° FOV to first surface lens of CTS):
10 mm ≤ d ≤ 100 mm (max!)
Optics
- Entrance pupil D of CTS.Targetis-Nano:
D=48 mm (Clear Aperture: 45,7 mm) - Achromatic properties:
+6.7D - Virtual target distance:
≥ 5 m
Target
- Target Size (inner dimensions):
24 mm x 24 mm - Outer dimension: (L x H x W):
approx. 195 mm x 80 mm x 80 mm
Mounting
4 variable (longitudinally adjustable) sliding blocks along the bottom of the aluminum profile for attaching mounting brackets, each with 2 x M4 threads (sliding blocks height 10 mm above the floor)
Target illumination
- Passive illumination from outside:
Top cover plate and one side panel is opal (T ≥ 70 %), so that external lighting can be provided through the top plate< - Optional active illumination:
none
Further information and product variants can be found on our website
CTS.Targetis – Camera Target Scope
